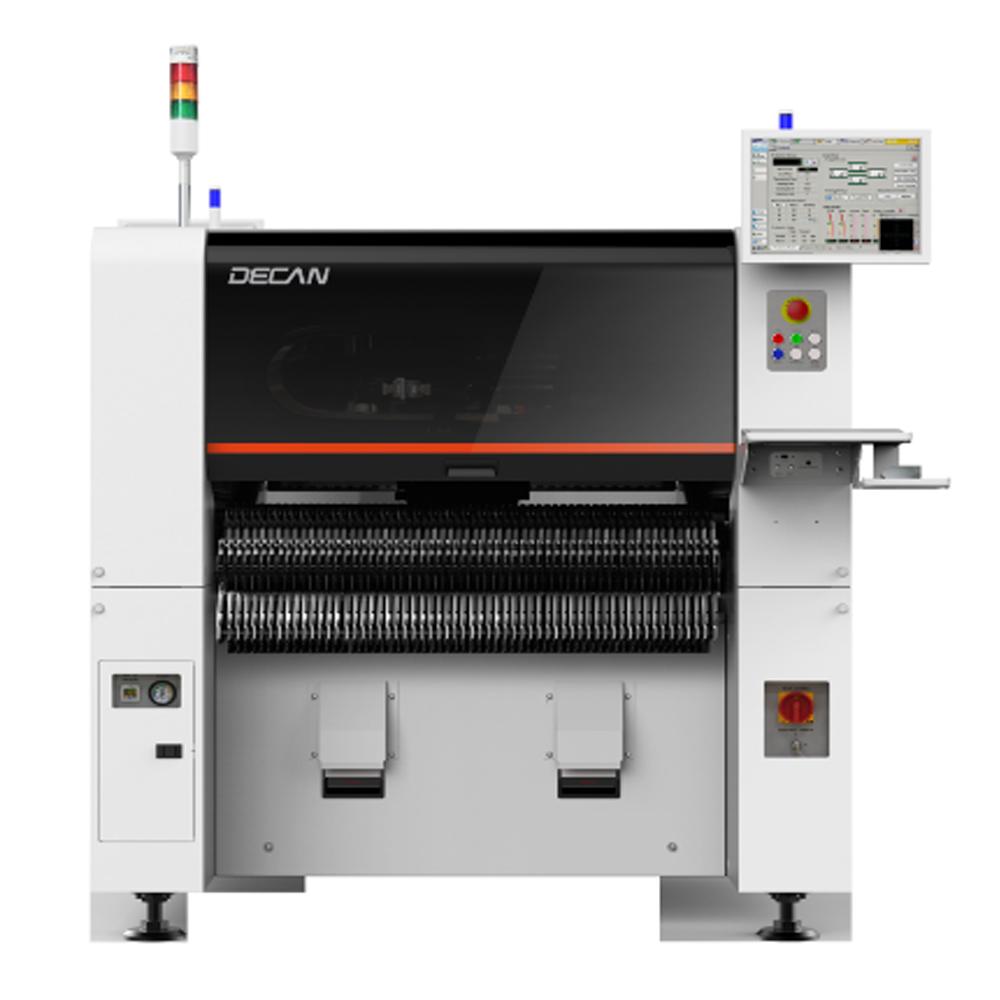

Samsung L2 smt chip mounter pick&place machine
DECAN L2, Samsung DECAN L2, Samsung L2, DECAN L2 chip mounter, DECAN L2 pick&place machine, Samsung pick and place machine,DECAN F2, Samsung DECAN F2, Samsung F2, DECAN F2 chip mounter, DECAN F2 pick&place machine, DECAN S2, Samsung DECAN S2, Samsung S2, DECAN S2 chip mounter, DECAN S2 pick&place machine, pick and place machine, Samsung machine price, smd machine price, smt machine price, pnp machine, chip shooter, chip mount, chip mounter price
Features:
HIGH PRODUCTIVITY
Optimizing PCB transportation paths for productivity improvement
Modular Conveyors
■ An optimal conveyor model configuration is possible according to production line composition (shuttle ↔ dual) applied with a modular conveyor that is replaceable on site.
■ PCB supply time is shortened as a result of high-speed shuttle conveyor operation. Minimized head path for improved equipment speed
Twin Servo Control
■ Ensuring high-speed operation with a linear motor application to the Y axis, and twin servo control High-speed Flying Head
■ Minimized head movement path through recognizing parts during transportation following parts installation
■ 6-spindle head with individually operating Z axes
HIGH RELIABILITY
Placement Accuracy: ±40㎛ (0402mm 01005inch)
■ Applied with a high-precision linear scale and rigid mechanism
■ Provides precision calibration algorithms and diverse automatic calibration functions
FLEXIBLE LINE SOLUTION
Provides optimal line solutions through versatility and productivity improvement
DECAN Line
■ Optimal line configuration from chips to uniquely-shaped components according to options setup
Equipment capable of responding to large-scale PCBs, which can be remodeled on site
■ Standard equipment can be remodeled on site to equipment capable of large-scale PCB handling
– Responsive to a maximum 1,200 x 460mm PCB
Responsive to uniquely-shaped components (including tray components)
■ Responsive to a maximum 52mm(H25mm) IC when the stage vision option is applied
■ LED & LED lens placement with LED flipped & lens protrusions cognition
EASY OPERATION
Strengthened equipment software operation convenience
■ Convenient production and editing of work programs with built-in equipment optimization software
■ Provision of a range of work data and information on a large-scale LCD screen
High-precision, convenient electric feeder
■ Calibration and maintenance-free electric feeder
■ Improved work convenience with a single reel bank mounted feeder
■ Improved productivity through the provision of automatic parts pick-up position alignment between feeders
Reduced work load through parts connection automation (smart feeder)
■ Automatic loading and splicing capabilities implemented as an industry first
– Significantly reduction in work time through feeder preparation and parts connection operation automation which were previously carried out manually
■ Zero consumables costs for parts connection attained
Specification:
|
model
|
DECAN L2
|
|
Vision
|
Flying Vision(FOV 20.5mm)
Stage Vision(Option)
|
|
Feeder Capacity
|
120ea(8mm)
|
|
Power Voltage
|
3 phase AC 200/208/220/240/380/415v±10%
|
|
Power Consumption
|
Max.5.0 KVA
|
|
Speed
|
56,000 CPH (Optimum)
0.55 sec/component (QFP100 0.5P)
|
|
Structure
|
2 Gantry x 6 Spindles/Head
|
|
Accuracy
|
±40μm Cpk≥1.0 (0402 chip)
±30μm Cpk≥1.0 (IC, Stage vision)
|
|
Parts Size
|
0402 ~ 21mm, H12mm
~ 55mm, H25mm
|
|
PCB Size
|
50 x 40 ~ 510 x 460mm (Standard)
740 x 460mm (Option)
1,200 x 460mm (Option)
|
|
Weight
|
1800kg
|
|
Dimensions
|
1430*1740*1485mm
|
Note: Please Note that we only can sell the Samsung new machine in China, as for the other country, we only can sell second-hand samsung chip mounter machine.
