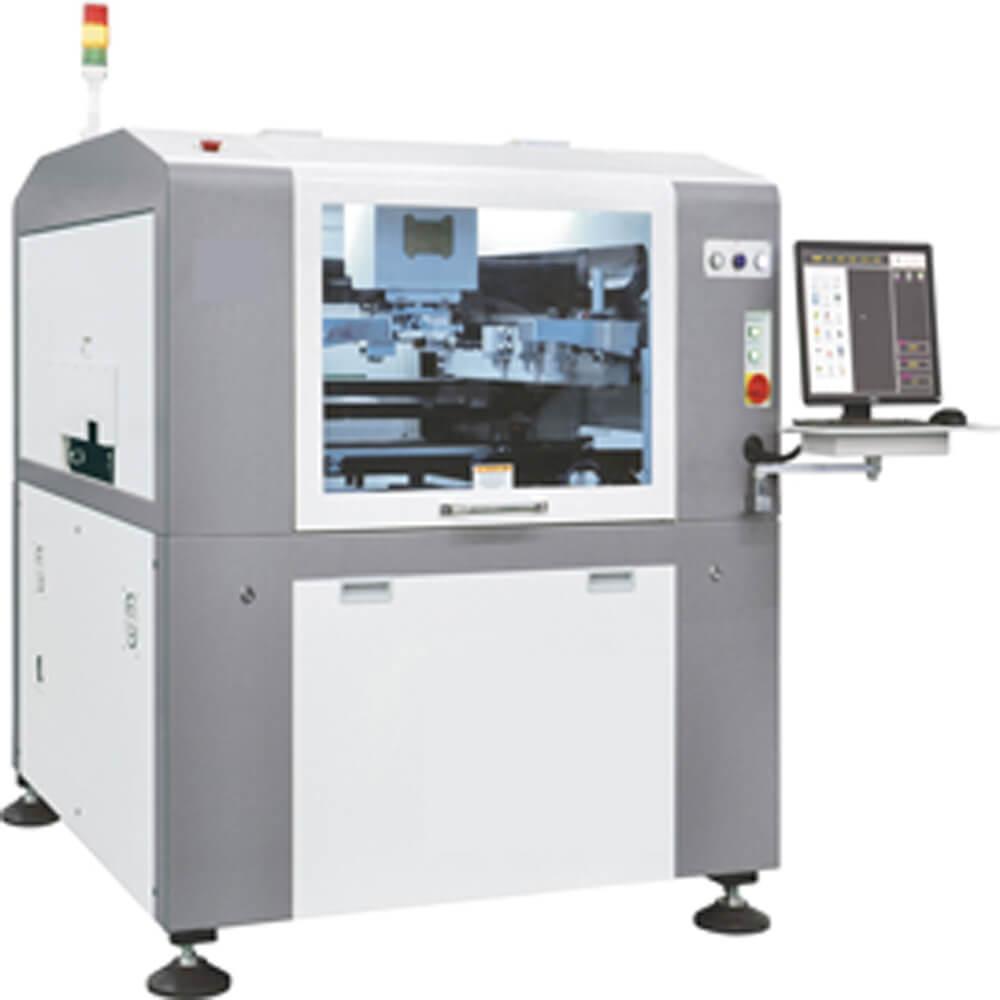

Fully Automatic PCB Solder Paste Printer for electric boards
Fully AutomaticPCB stencil Solder Paste Screen Printer
Description:
LK-F850 is a high speed & high precision screen printer , for Accuracy it has built-in ±10 microns alignment,and ±25 microns wet print capability at 6sigma) with 20seconds total throughput,including print and stencil cleaning cycles.
And accommodates PCB board from 50 x100mm to 850*600mm, makes job set up simple: input the stencil size, insert the stencil into the frame mounter until it reaches the stopper, and the system software will handle the rest. Be ready for the next production assignment in a matter of seconds.
|
Standard Configuration
|
Specification
|
|
Total System Alignment
|
± 10 microns (at 6Sigma)
|
|
Wet print capability
|
± 25 microns (at 6Sigma)
|
|
Core Cycle Time
|
12secs+process
|
|
Maximum Print Area
|
850mm*(X)×500mm(Y)
|
|

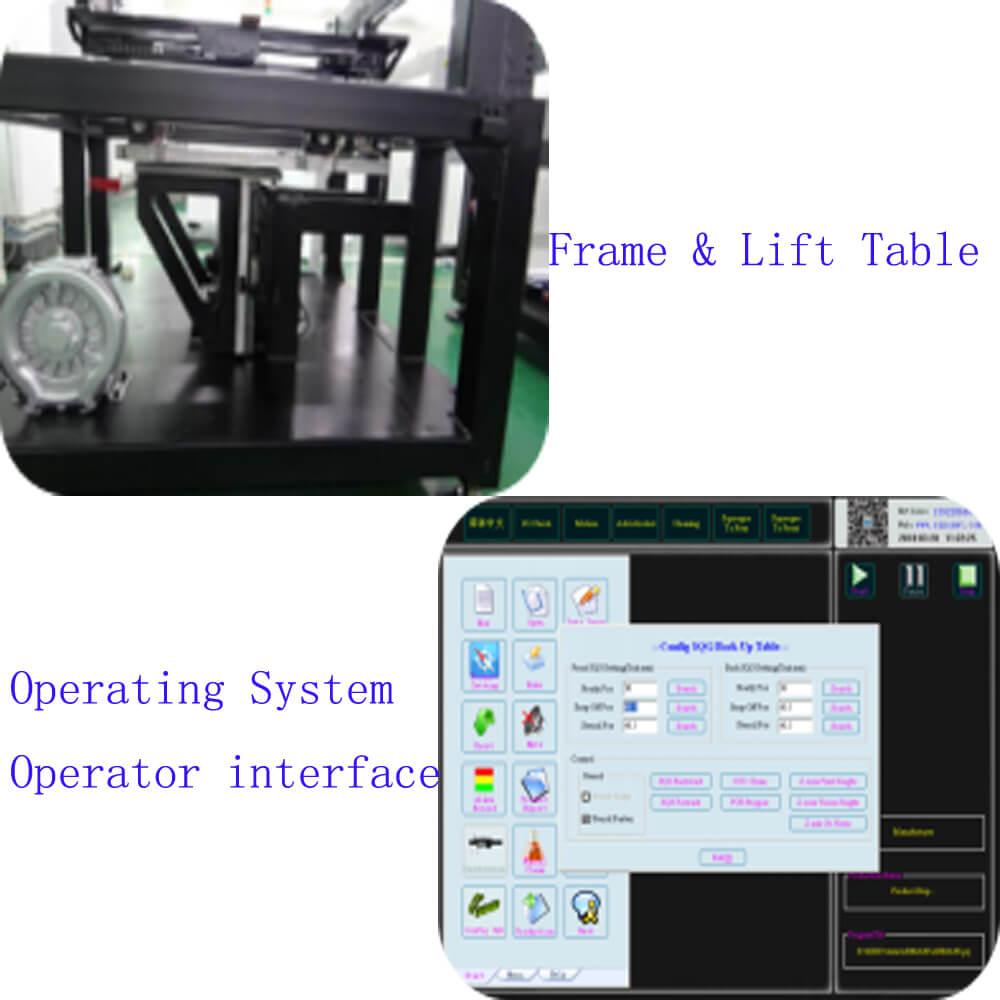

Printer Construction
|
One piece optimised welded frame
|
|
ISCAN Machine Control
|
integrated circuit (IC)
|
|
Operating System
|
Windows 7 Standard embedded
|
|
Operator interface
|
Interface in English with HC Automation Copyright
|
|
Camera
|
CCD digital Camera for Remote coaxial vision system four way independent coaxial/ Geometry pattern match/Annular LED light source FOV 6.4*4.8mm Automatic capture
|
|
Camera Positioning
|
Automatic capture
|
|
Squeegee Pressure Mechanism
|
Software controlled,motorised
|
|
Stencil Positioning
|
Semi-Auto-Load incorporating squeegee drip tray
|
|
Stencil Alignment
|
Motorised via actuators X,Y, and Theta
|
|
Under Stencil Cleaning
|
Interchangeable Under Stencil drops of rain type cleaning system , fully programmable with wet/dry/vacuum wipe and the system can be programmed combination of dry wipe, wipe with solvent (“wet wiping”length programmable within 850mm)
|
|
Vacuum Assist Under Stencil Cleaning
|
Programmable powerful vacuum suction
|
|
Squeegee
|
Clamped double trailing edge squeegee (1set included)
|
|
Machine Interface
|
Upline and downline SMEMA included
|
|
Connctivity
|
Standard networking and USB interface available
|
|
Tri Colour Beacon
|
Programmable with audible alarm
|
|
Documentation
|
Operator 、installation 、electrical Drawings ,On board technical manuals
|
|
Transport System
|
Specification
|
|
Transport Speed
|
100-1500mm/sec Programmable
|
|
Transport height
|
900±40mm
|
|
Type
|
Single piece with 3mm “U”type transport belts ,front rail fixed
|
|
ESD Compatibility
|
Transport belts and guides with surface resistivity between 10⁶ and 10ⁱⁱ ohms
|
|
Width Adjustment
|
Programmable motorized rear rail
|
|
Transport Direction
|
Left to right ,Right to left,Left to left, Right to right
|
|
Board Handling Size(minimum)
|
50mm(X)x100mm(Y)
|
|
Board Handling Size(maximum)
|
850mm(X)x500mm(Y)
|
|
Board Thickness
|
0.2mm to 6mm
|
|
Board Weight(maximum)
|
3kg
|
|
Board Warpage
|
＜1%（Based on diagonal length）
|
|
Board Fixture
|
At the bottom of the support, elastic side clamping, Z-direction tabletting , Optional centernest vacuum
|
|
Board Support Methods
|
Magnetic pins,Support blocks,manaul up-down table
|
|
Board Underside Clearance
|
Programmable 13mm (25mm option
|
|
Process Parameter
|
Specification
|
|
Print Pressure
|
0~30kg programmable
|
|
Print Speed
|
10~200mm/sec
|
|
Print Gap
|
0mm to 6mm
|
|
Air Pressure
|
4~6kg/cm²
|
|
Air Consumption
|
Around 0.007m³/min
|
|
Substrate Separation
|
Speed:0.1~125mm/sec Programmable with three step control
|
|
Print Modes
|
Print/Print Print/Flood Flood/Print Adhesive
|
|
Paste Knead
|
Programmable number period on demand
|
|
Vision
|
Specification
|
|
Vision System
|
beijing daheng
|
|
Fiducial Recognition
|
Image matching, mathematical algorithm
|
|
Fiducials
|
2 or 4
|
|
Fiducial Types
|
Standard geometry, reference point, pad / hole
|
|
Fiducial Size
|
0.1mm to 3mm
|
|
Fiducial Locations
|
Anywhere on substrate
|
|
Fiducial Error Reovery
|
Optical automatic adjustment , automatic search reference point
|
|
Camera Lighting
|
Program control LED brightness adjustment
|
Machine detailed:
We are SMT machine manufacturer in China, located in Shenzhen and Zhongshan, owned the area of 5000m², our products range include smt pick and place machine, reflow oven, wave solder machine, stencil printer, pcb conveyor, auto dispenser , pcb lead foot forming machine, pcb cutting machine, solder paste mixer machine ect.
we are not only manufacturing machine, but also provide different smt line or dip line for customers.
